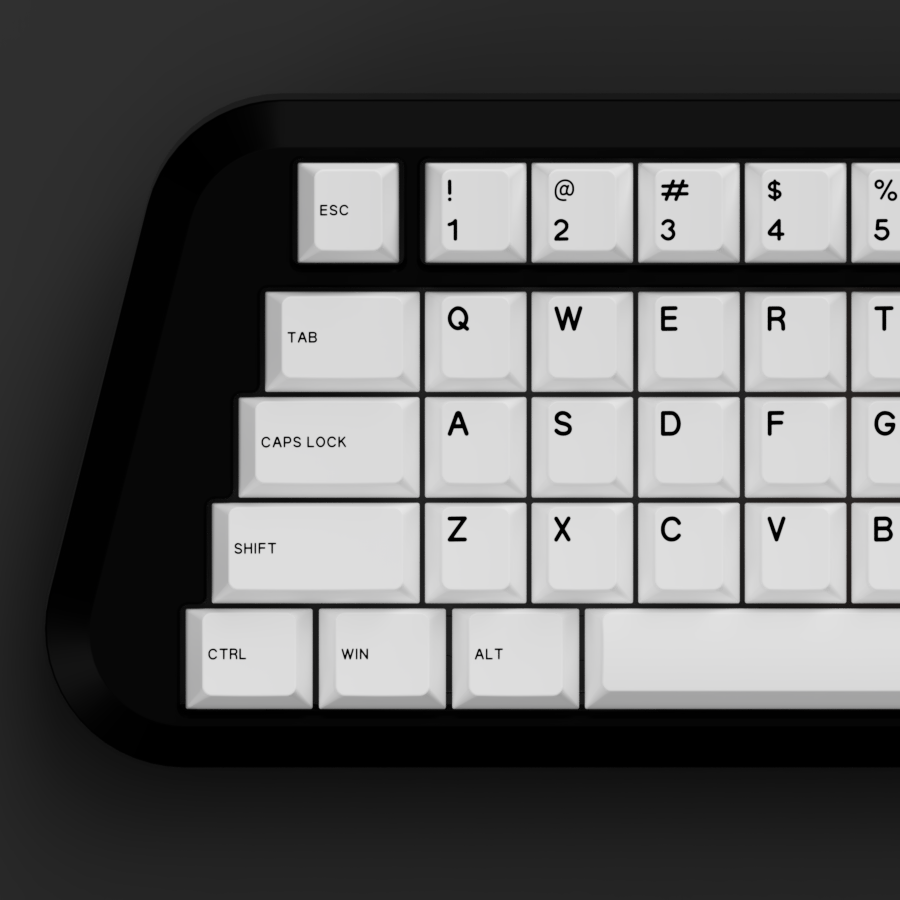

Ortholinear Layout
Ortholinear alphanumeric keys with regular modifier keys suitable for new as well as experienced ortholinear typists

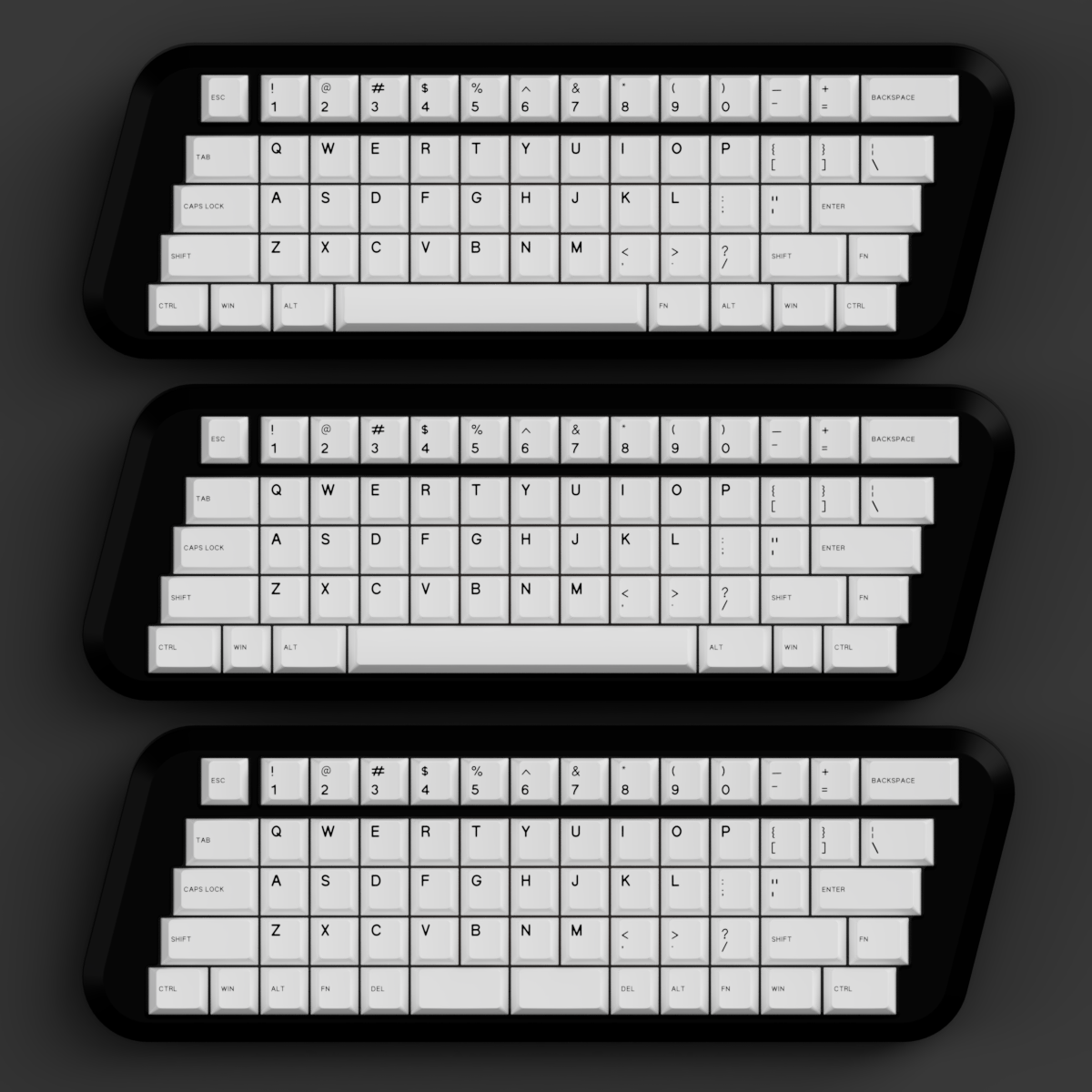

Endless Layout Customization
Numerous layout options for both solderable and hotswap PCBs

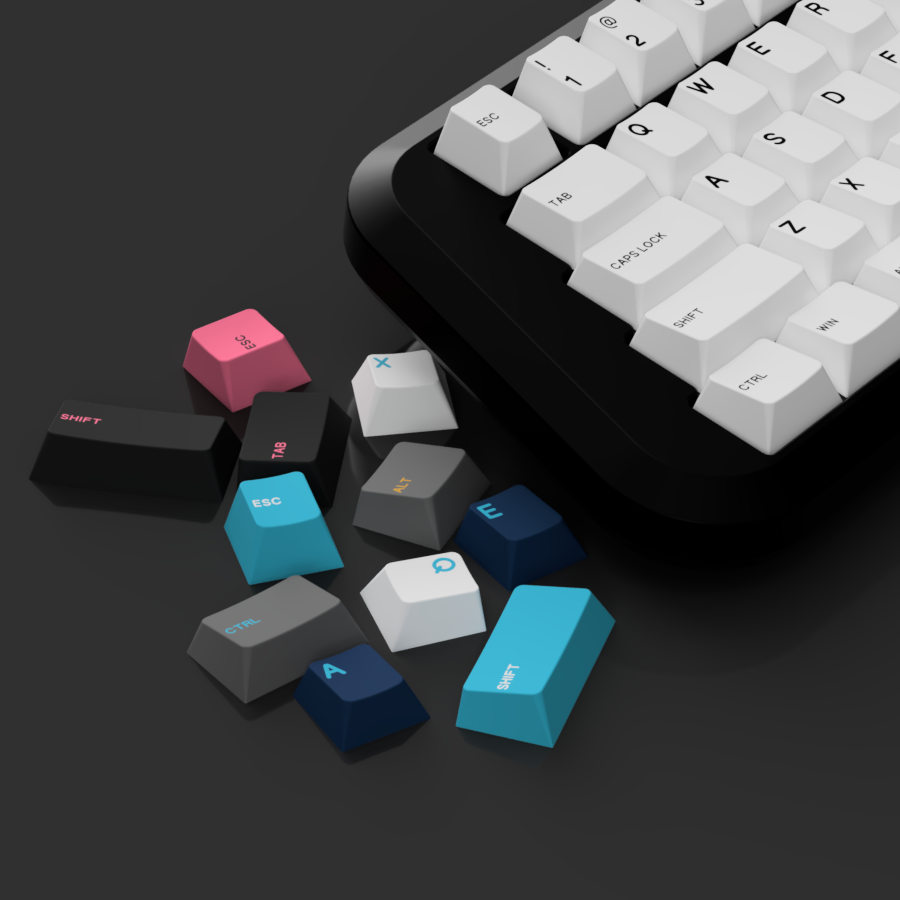

Use your favourite keycaps*
Full size modifiers mean that you can achieve the full aesthetic potential of your keysets
*2U shift required
Specifications
-
Measurements

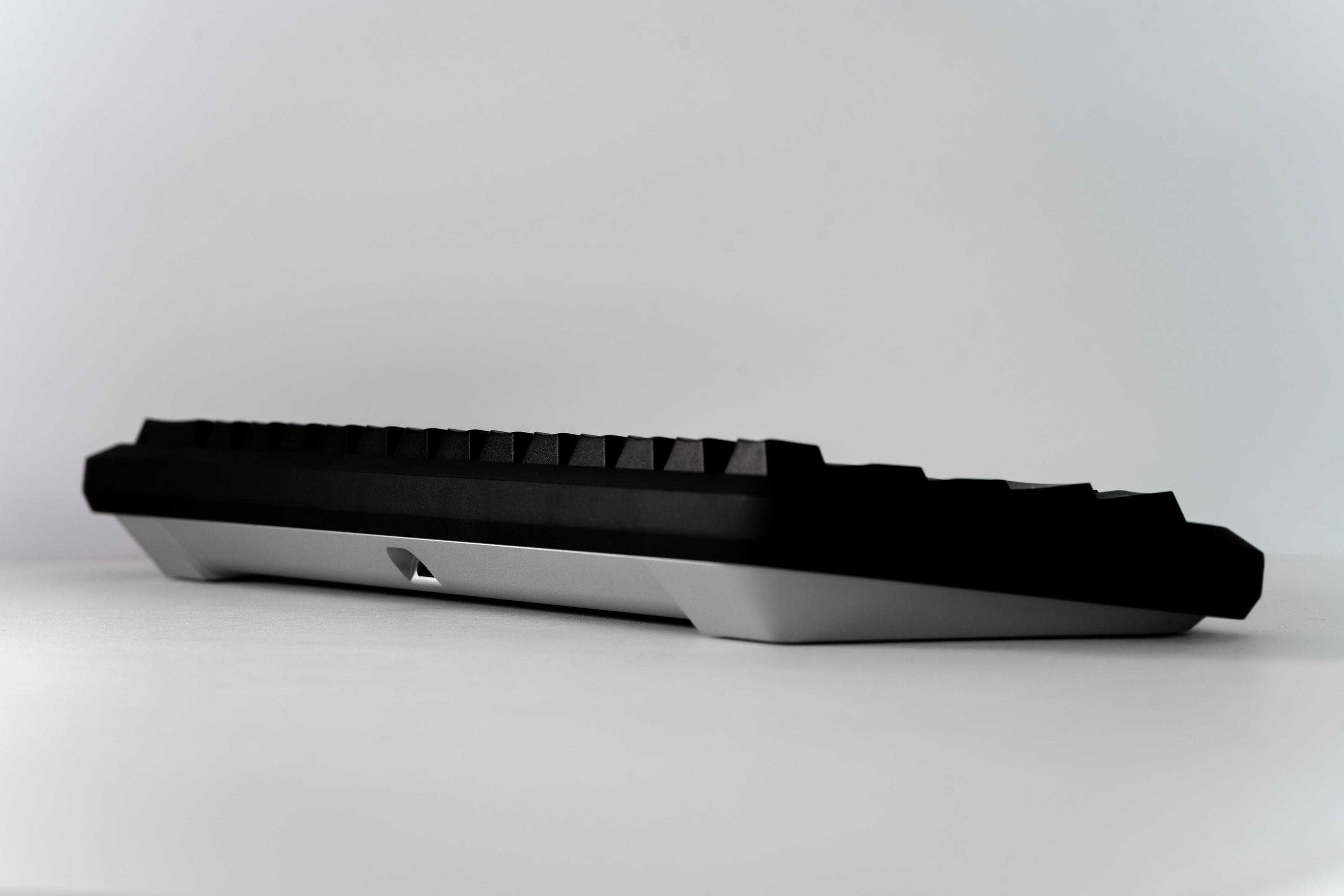

Typing Angle: 7.5 degrees
Front Height: 16.5 mm
EKH: 25 mm
Width: 355 mm
Depth: 120 mm
Weight: 1.5 kg [3.3 lbs]
-
PCB & Layout
View LayoutsSwitches: MX-style only
PCB & Plate thickness: 1.6 mm
MCU: ATMEGA32U4
Firmware: QMK/VIA
Daughterboard: UDB S1
-
Materials
Case: Aluminum

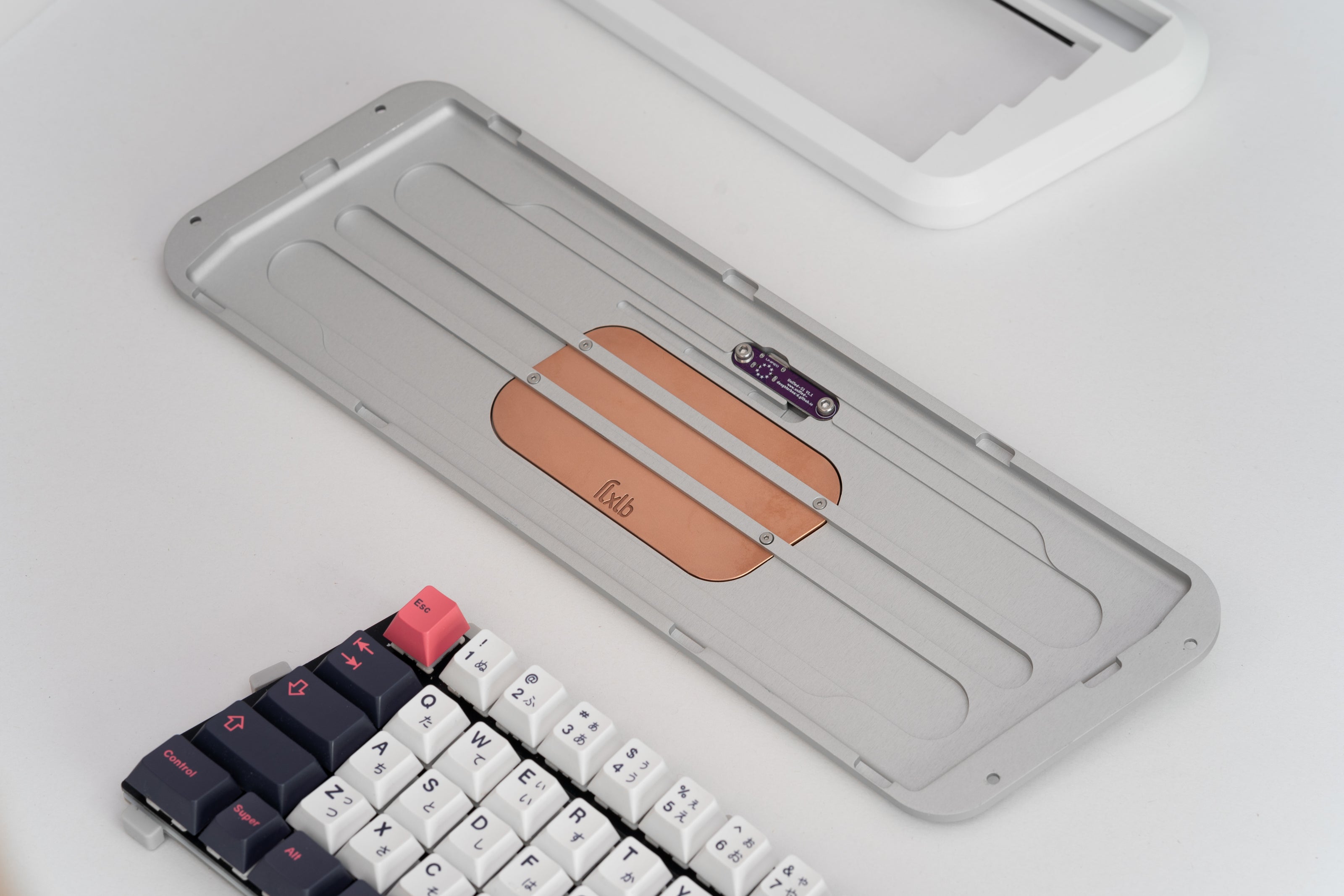

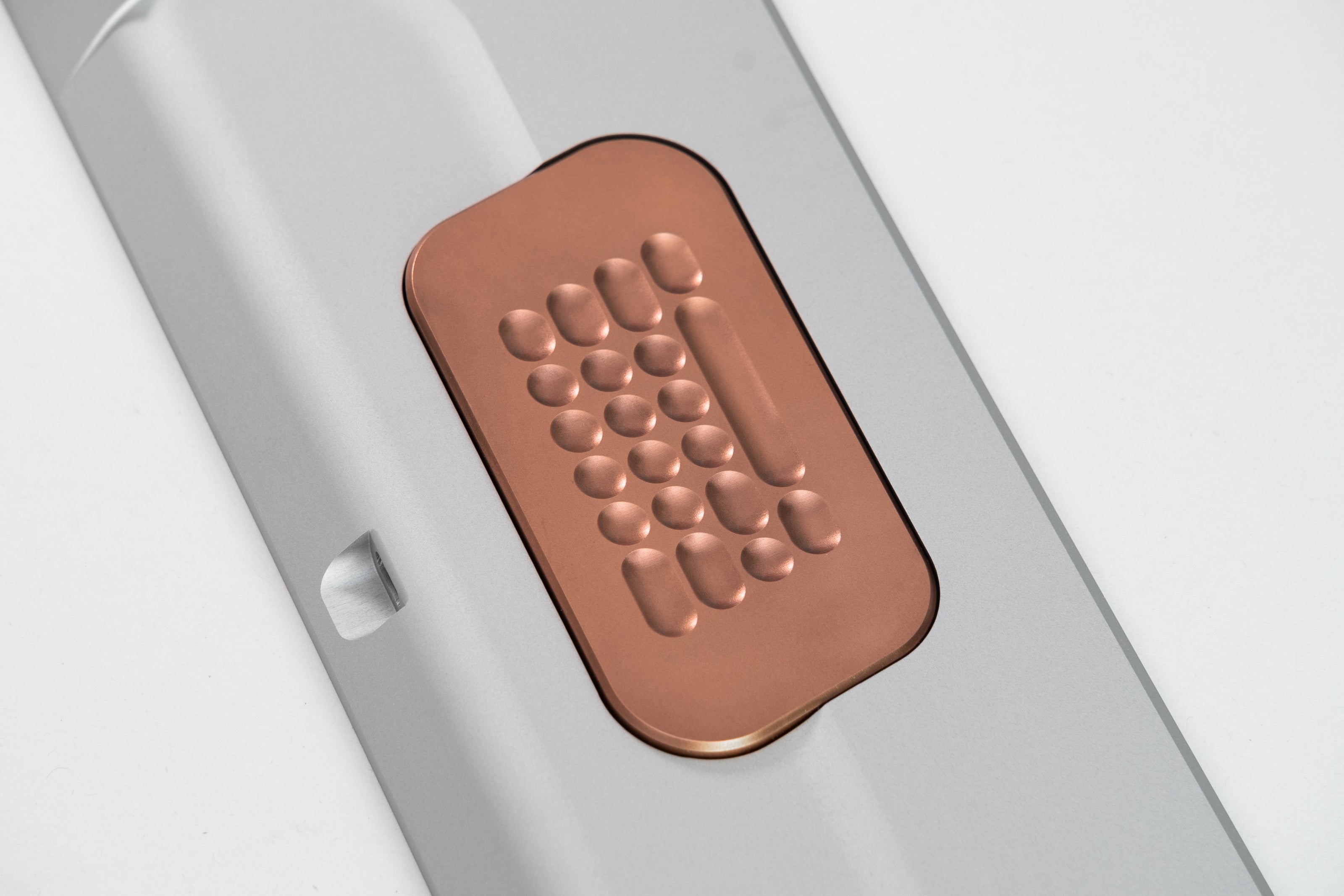

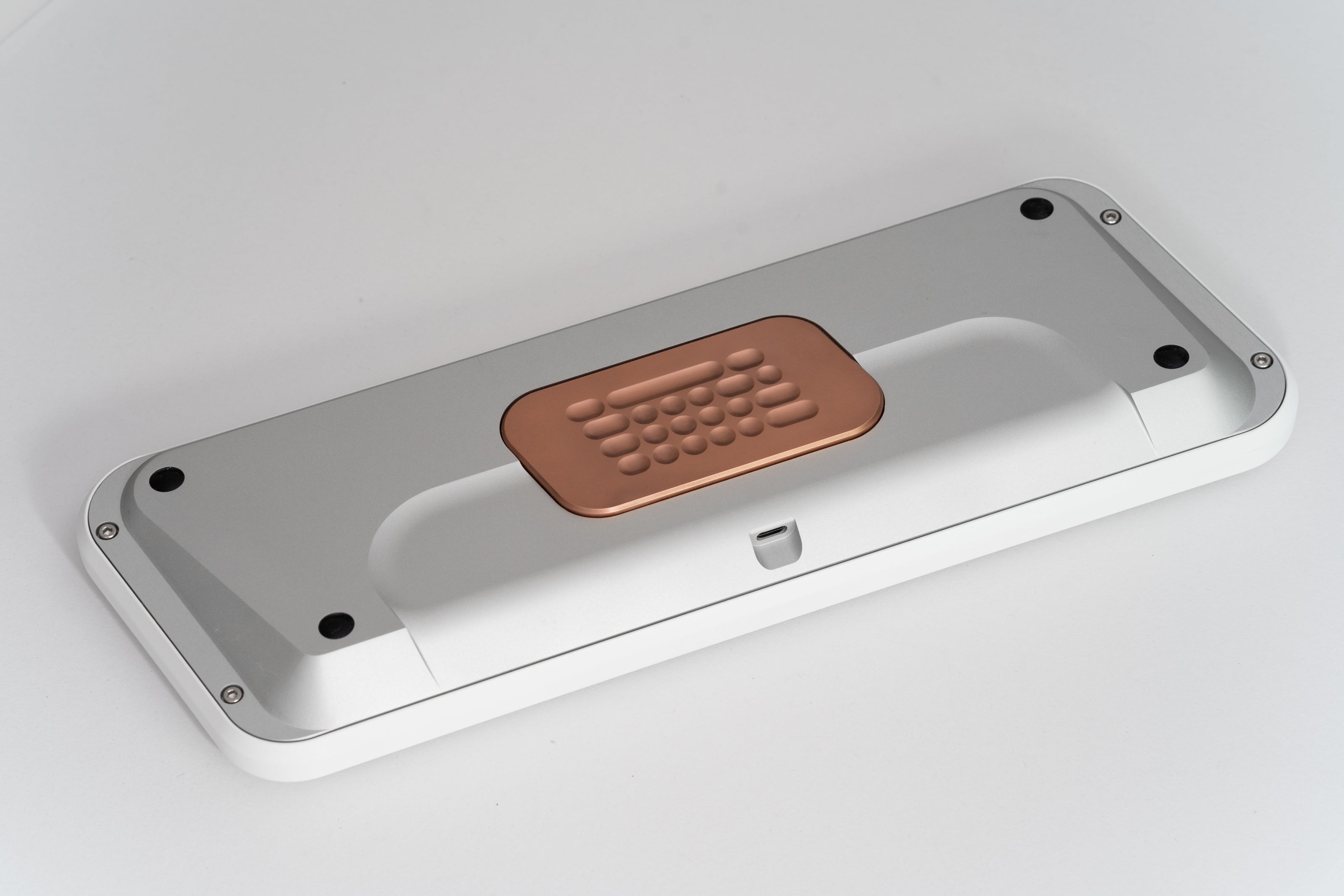

Weight: Copper

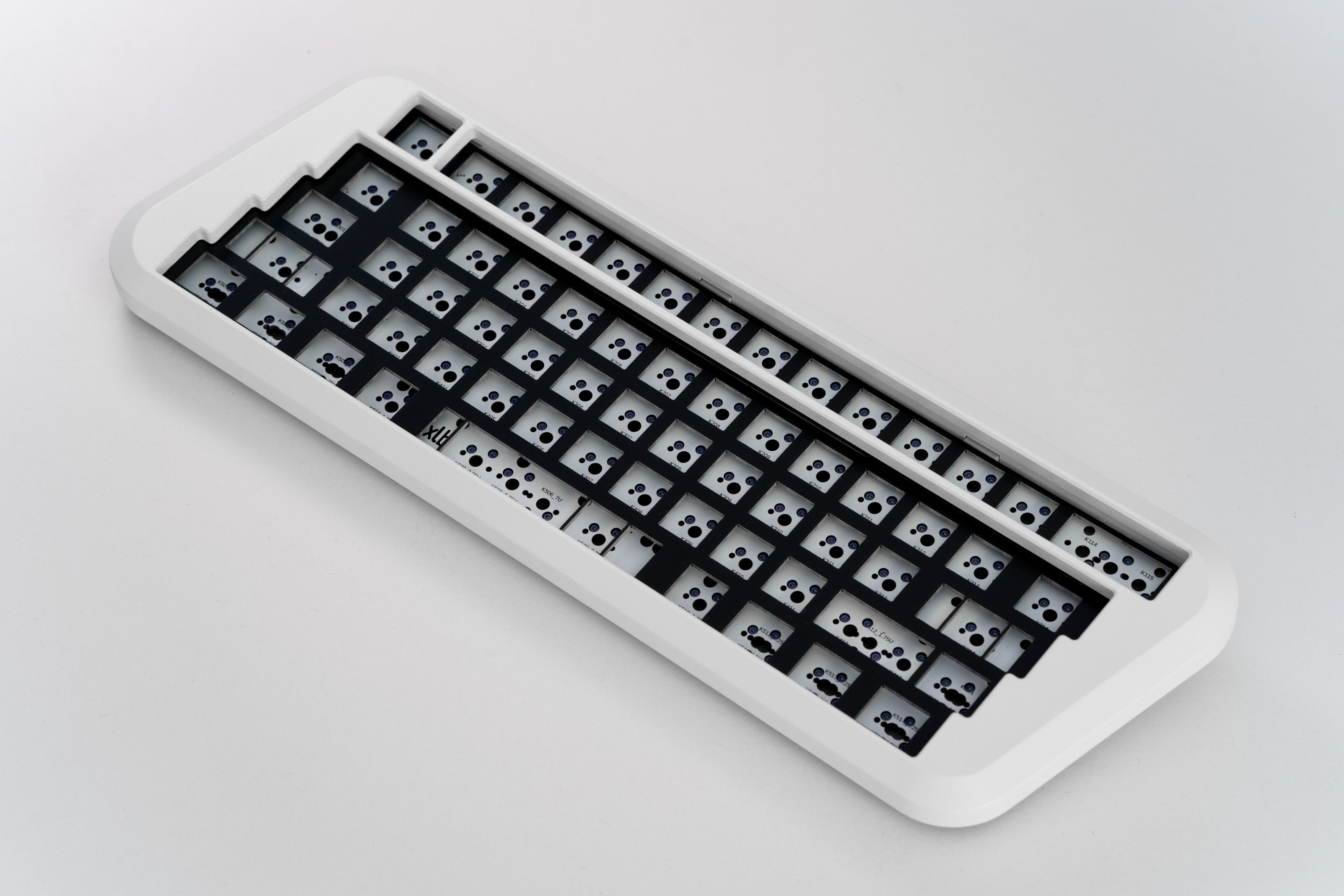

Plate: FR4, PC, POM, Aluminum, Brass
Mounting: Silicone gasket (PCB mount)
-
Surface Finish & Color

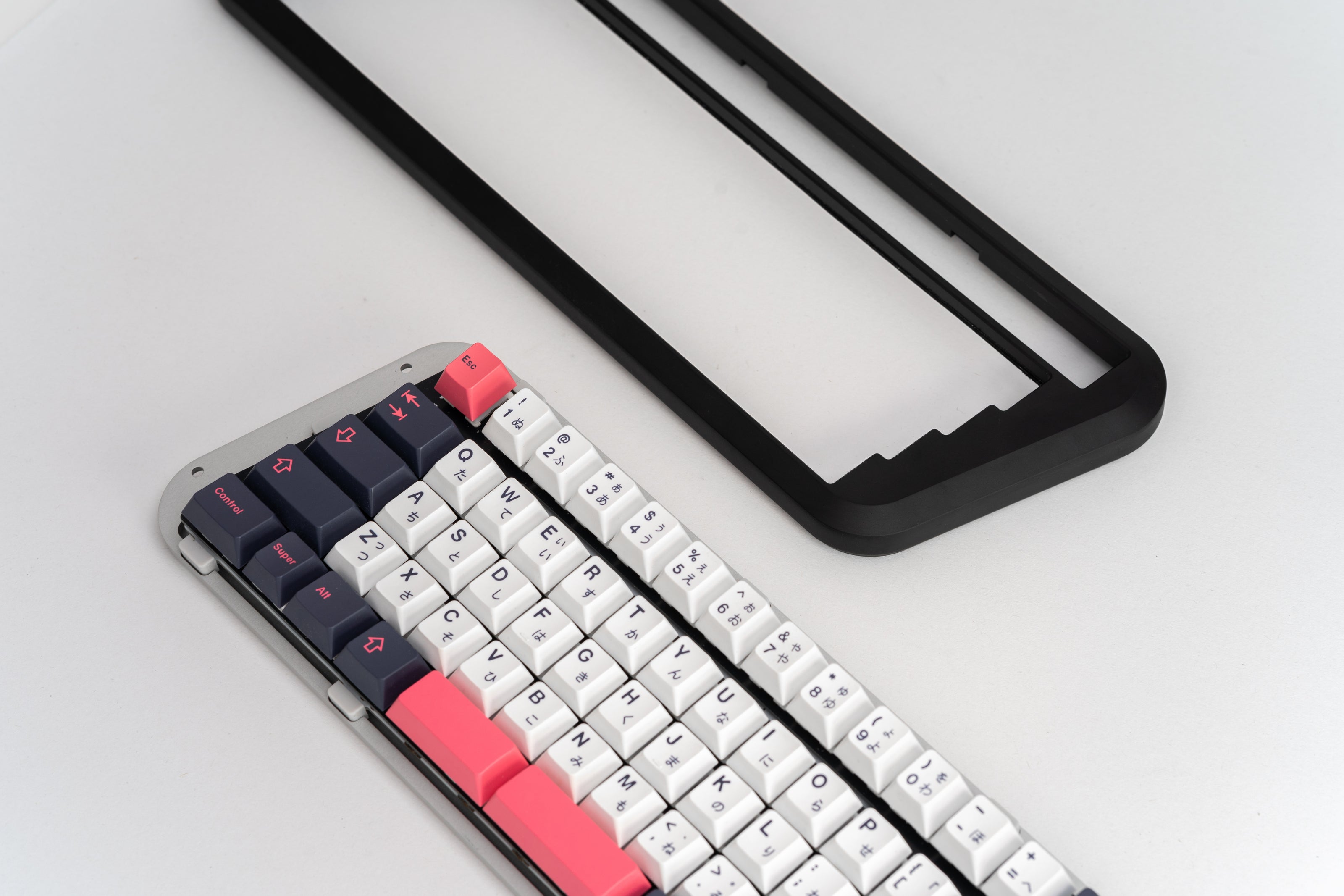

Case: E-White, Anodized Black
Weight: Satin, clear-coated
Quality Expectations: No scratches on visible exterior surfaces; interior may/may not have scratches
FAQ
When does the ZT60 group buy end?
The ZT60 group buy will run from May 16th 2025 until June 15th 2025.
How much will the ZT60 cost?
The ZT60 will start at USD$450/CAD$620.
Why is the ZT60 so expensive?
Ortholinear keyboards are part of a niche market, so production costs are higher due to lower demand and limited manufacturing volumes. However, by sharing this keyboard with others and growing the community, we hope to increase interest and drive down costs over time.
When will the ZT60 ship?
The ZT60 will have an estimated fulfillment time around November/December 2025.
Where can I find updates during the production of ZT60?
Bi-weekly updates can be found on our Updates page, Discord server, Geekhack post, or by subscribing to our newsletter.
How will I know if my keyset is compatible?
If your keyset includes a 2u Shift key, it will be compatible with the ZT60. For full layout options and keyset compatibility, check out the ZT60 layout options.
Is there a build/setup guide?
A build/setup guide will be added before the ZT60 ships.
What is included in the ZT60 kit?
The kit includes:
- Aluminum top and bottom case
- Copper weight
- PCB
- USB-C daughterboard
- Daughterboard cable
- Plate
- Silicone gaskets
- Silicone dampers
- Screws
- Adhesive feet

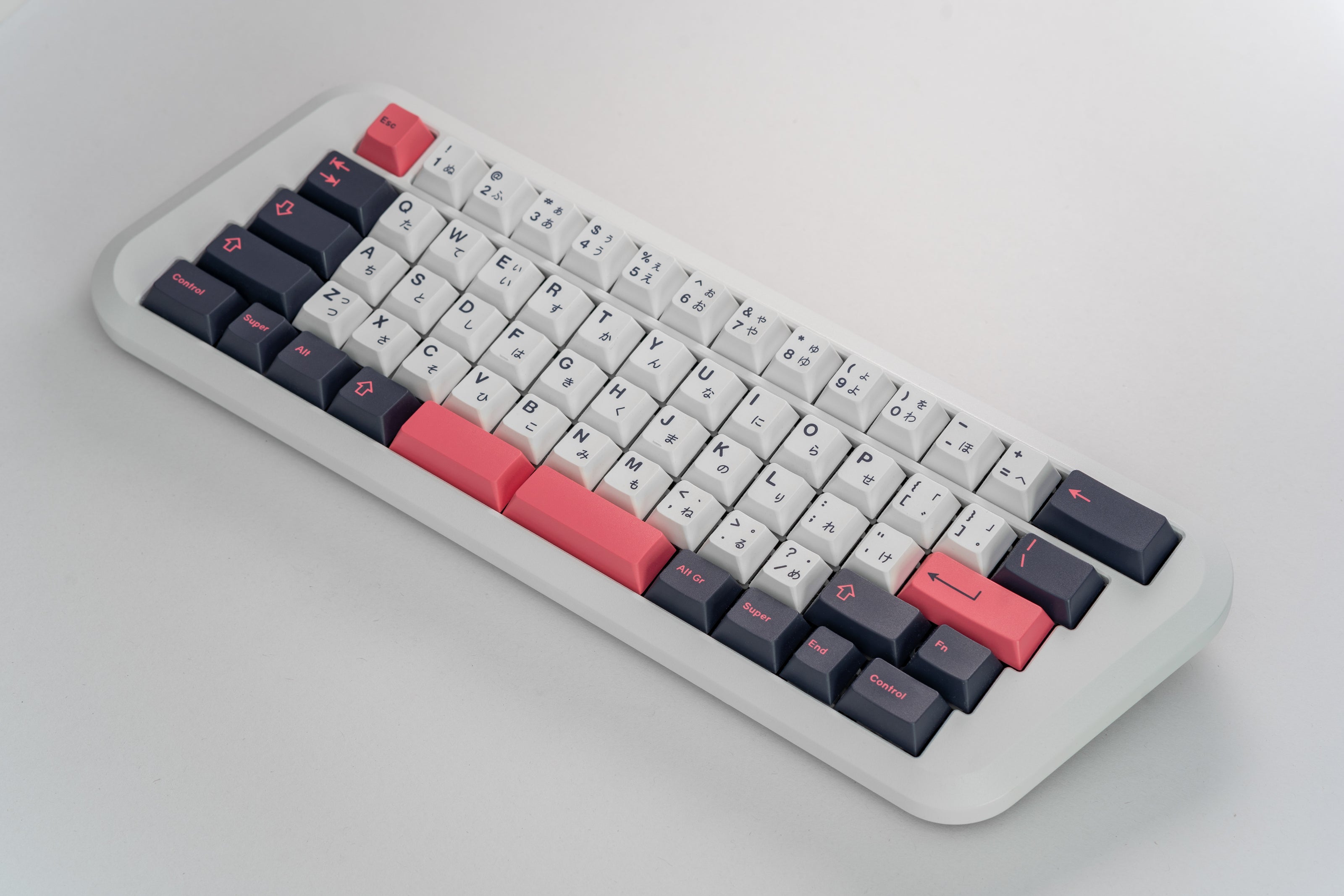

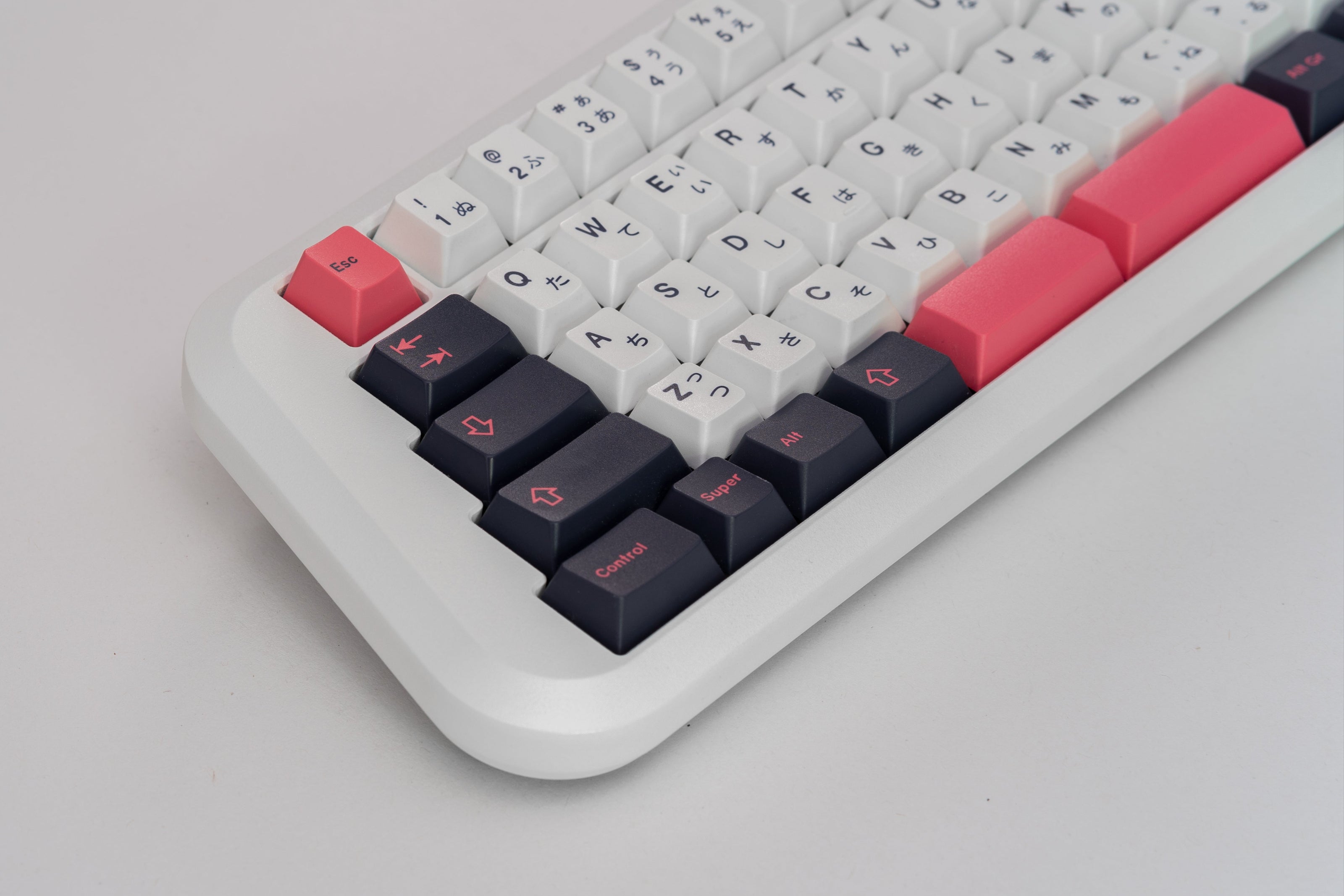

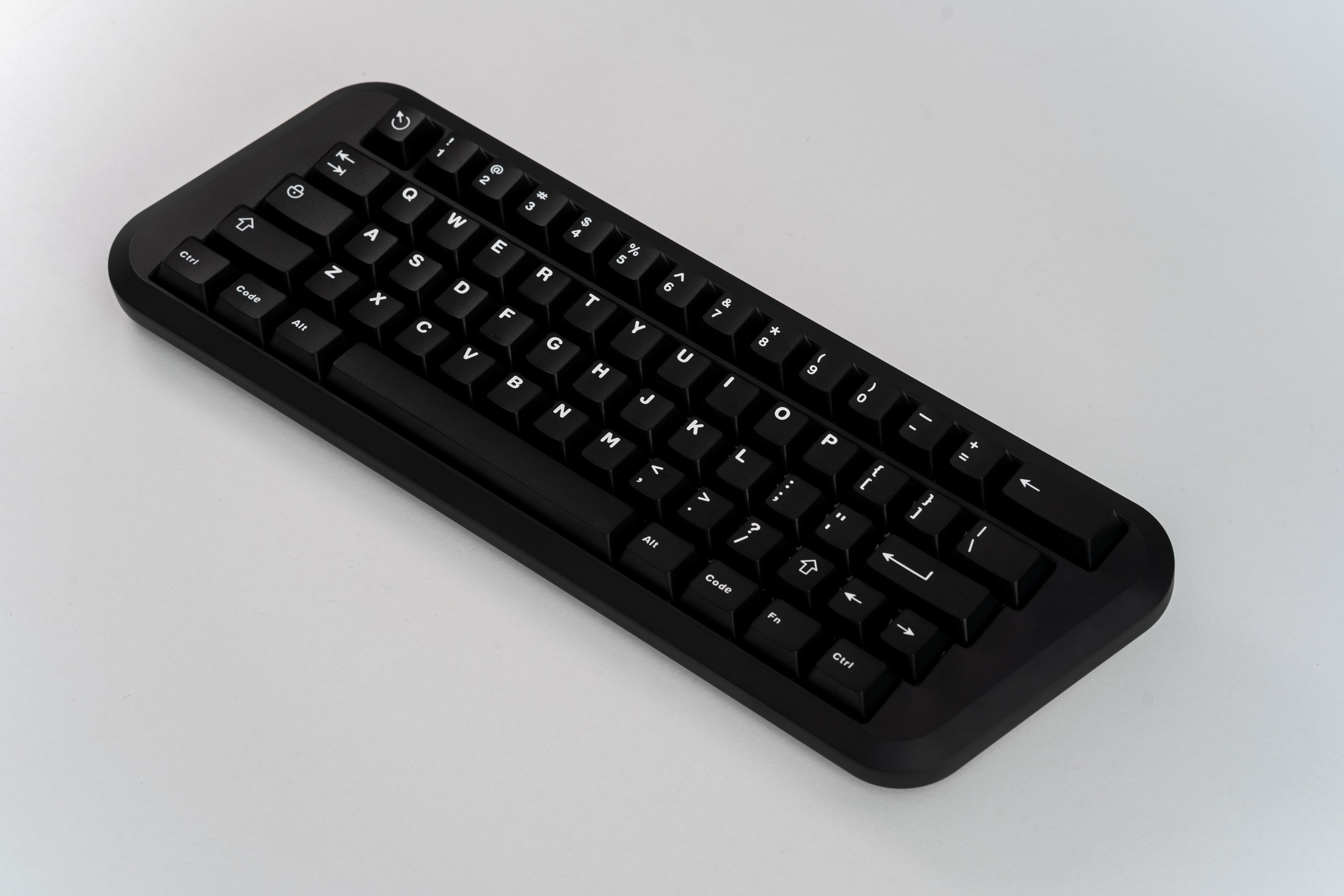

Gallery
